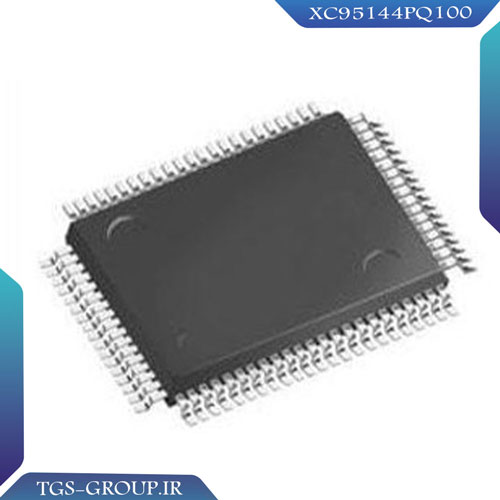

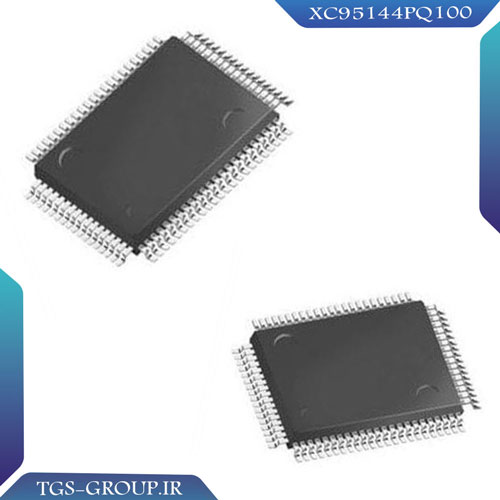

آی سی XC95144PQ100

کاربرد XC95144PQ100

از کاربرد های بارز XC95144PQ100 می توان به عملکرد در سطح پیشرفته برای برنامه نویسی مدارهای پیچیده اشاره کرد.

ویژگی XC95144PQ100

• 7.5 ns pin-to-pin logic delays on all pins
• fCNT to 111 MHz
• 144 macrocells with 3,200 usable gates
• Up to 133 user I/O pins
• 5V in-system programmable
– Endurance of 10,000 program/erase cycles
– Program/erase over full commercial voltage and
temperature range
• Enhanced pin-locking architecture

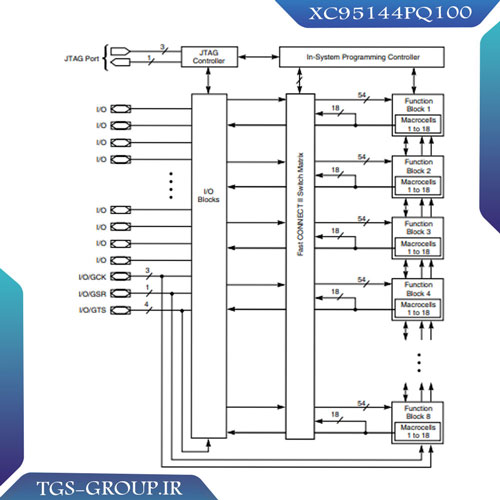

• Flexible 36V18 Function Block (FB)
– 90 product terms drive any or all of 18 macrocells
within Function Block
– Global and product term clocks, output enables,
set and reset signals
• Extensive IEEE Std 1149.1 boundary-scan (JTAG)
support
• Programmable power reduction mode in each
macrocell
• Slew rate control on individual outputs
• User programmable ground pin capability
• Extended pattern security features for design
protection
• High-drive 24 mA outputs
• 3.3V or 5V I/O capability
• Advanced CMOS 5V FastFLASH technology
• Supports parallel programming of more than one
XC9500 concurrently
• Available in 100-pin PQFP, 100-pin TQFP, and 160-pin
PQFP packages
