کاربرد ADUM3401
از کاربرد های این ایزولاتور می توان به کارایی در ایزولاسیون مدارهای الکترونیکی اشاره نمود.
ویژگی ADUM3401
Enhanced system-level ESD performance per IEC 61000-4-x
Low power operation
5 V operation
1.4 mA per channel maximum at 0 Mbps to 2 Mbps
4.3 mA per channel maximum at 10 Mbps
34 mA per channel maximum at 90 Mbps
3.3 V operation
0.9 mA per channel maximum at 0 Mbps to 2 Mbps
2.4 mA per channel maximum at 10 Mbps
20 mA per channel maximum at 90 Mbps
Bidirectional communication
3.3 V/5 V level translation
High temperature operation: 105°C
High data rate: dc to 90 Mbps (NRZ)
Precise timing characteristics
2 ns maximum pulse width distortion
2 ns maximum channel-to-channel matching
High common-mode transient immunity: >25 kV/μs
Output enable function

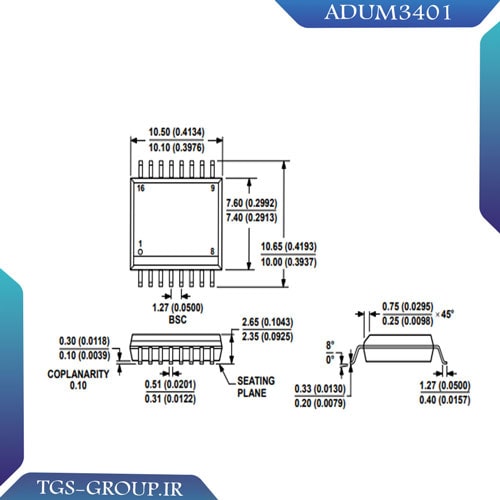

16-lead SOIC wide body, RoHS-compliant package
Safety and regulatory approvals
UL recognition: 2500 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice 5A
VDE Certificate of Conformity
DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12
VIORM = 560 V peak
