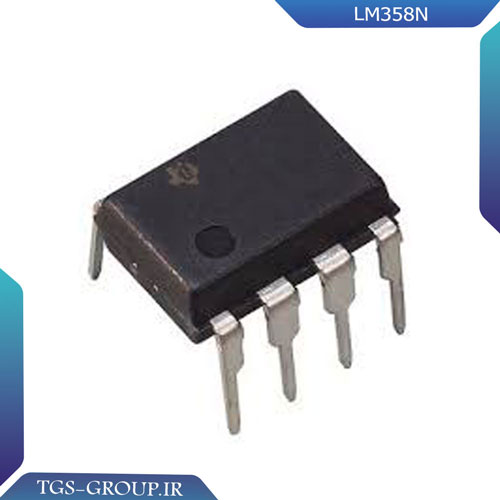

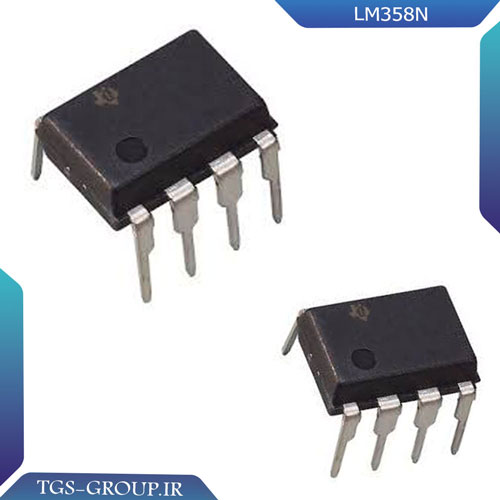

کاربرد LM358N
بیشترین کارایی این تقویت کننده در فیلتر های فعال و مدار ها نیازمند تقویت می باشد.
ویژگی LM358N
• Available in 8-bump DSBGA chip-sized package
(see AN-1112, SNVA009)
• Internally frequency compensated for unity gain
• Large DC voltage gain: 100 dB
• Wide bandwidth (unity gain): 1 MHz (temperature
compensated)
• Wide power supply range:
– Single supply: 3 V to 32 V
– Or dual supplies: ±1.5 V to ±16 V
• Very low supply current drain (500 μA) essentially
independent of supply voltage
• Low input offset voltage: 2 mV
• Input common-mode voltage range includes
ground
• Differential input voltage range equal to the power
supply voltage
• Large output voltage swing
• Unique characteristics:
– In the Linear Mode the input common-mode
voltage range includes ground and the output
voltage can also swing to ground, even though
operated from only a single power supply
voltage
– The unity gain cross frequency is temperature
compensated
– The input bias current is also temperature
compensated
• Advantages:
– Two internally compensated op amps
– Eliminates need for dual supplies
– Allows direct sensing near GND and VOUT also
goes to GND
– Compatible with all forms of logic
– Power drain suitable for battery operation
