کاربرد DP83848VVVBC
از کاربرد های این آی سی می توان به کارایی در کنترل کننده های صتعتی اشاره کرد.
ویژگی DP83848VVVBC
• Low-power 3.3V, 0.18μm CMOS technology
• Low power consumption < 270mW Typical
• 3.3V MAC Interface
• Auto-MDIX for 10/100 Mb/s
• Energy Detection Mode
• 25 MHz clock out
• SNI Interface (configurable)
• RMII Rev. 1.2 Interface (configurable)
• MII Serial Management Interface (MDC and MDIO)
• IEEE 802.3u MII
• IEEE 802.3u Auto-Negotiation and Parallel Detection
• IEEE 802.3u ENDEC, 10BASE-T transceivers and filters
• IEEE 802.3u PCS, 100BASE-TX transceivers and filters
• Integrated ANSI X3.263 compliant TP-PMD physical sublayer
with adaptive equalization and Baseline Wander compensation
• Error-free Operation up to 137 meters
• Programmable LED support Link, 10 /100 Mb/s Mode, Activity,
and Collision Detect
• Single register access for complete PHY status
• 10/100 Mb/s packet BIST (Built in Self Test)

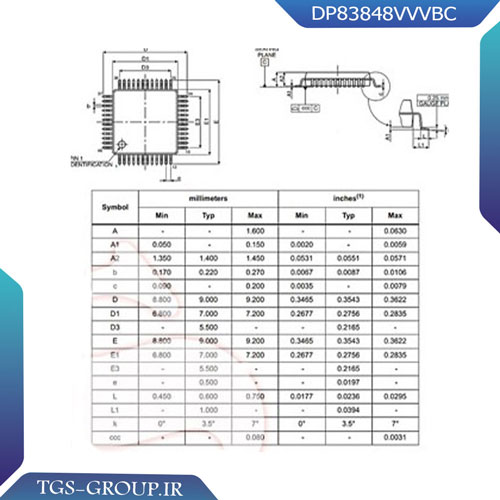

• 48-pin LQFP package (7mm) x (7mm)
