کاربرد ATXMEGA16A4
از کاربرد های این میکرو می توان به کارایی در کنترل صنعتی,موتورها,بردها,ابزار های برق و کاربرد های پزشکی اشاره نمود.
ویژگی ATXMEGA16A4
• High-performance, Low-power 8/16-bit Atmel® AVR® XMEGA™ Microcontroller
• Non-volatile Program and Data Memories
– 16 KB – 128 KB of In-System Self-Programmable Flash
– 4 KB – 8 KB Boot Code Section with Independent Lock Bits
– 1 KB – 2 KB EEPROM
– 2 KB – 8 KB Internal SRAM
• Peripheral Features
– Four-channel DMA Controller with support for external requests
– Eight-channel Event System
– Five 16-bit Timer/Counters
Three Timer/Counters with 4 Output Compare or Input Capture channels
Two Timer/Counters with 2 Output Compare or Input Capture channels
High-Resolution Extensions on all Timer/Counters
Advanced Waveform Extension on one Timer/Counter
– Five USARTs
IrDA Extension on one USART
– Two Two-Wire Interfaces with dual address match (I2
C and SMBus compatible)
– Two SPIs (Serial Peripheral Interfaces) peripherals
– AES and DES Crypto Engine
– 16-bit Real Time Counter with Separate Oscillator
– One Twelve-channel, 12-bit, 2 Msps Analog to Digital Converter
– One Two-channel, 12-bit, 1 Msps Digital to Analog Converter
– Two Analog Comparators with Window compare function
– External Interrupts on all General Purpose I/O pins
– Programmable Watchdog Timer with Separate On-chip Ultra Low Power Oscillator
• Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal and External Clock Options with PLL
– Programmable Multi-level Interrupt Controller
– Sleep Modes: Idle, Power-down, Standby, Power-save, Extended Standby
– Advanced Programming, Test and Debugging Interfaces
PDI (Program and Debug Interface) for programming, test and debugging
• I/O and Packages
– 34 Programmable I/O Lines

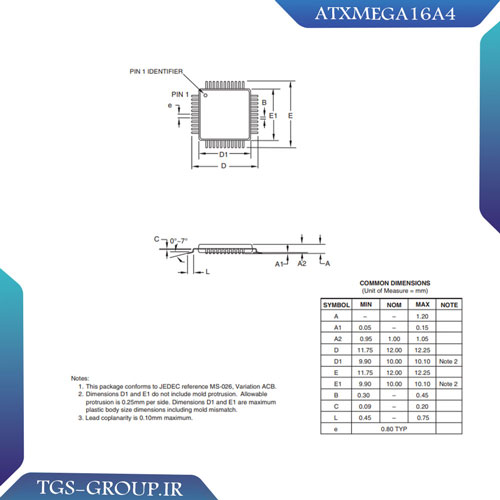

– 44 – lead TQFP
– 44 – pad VQFN/QFN
– 49 – ball VFBGA
• Operating Voltage
– 1.6 – 3.6V
• Speed performance
– 0 – 12 MHz @ 1.6 – 3.6V
– 0 – 32 MHz @ 2.7 – 3.6V
