کاربرد ADC0804LCN
این آی سی به عنوان یک رابط برای سنسور های دما,منابع ولتاژ و ترانسفورماتورها کارایی زیادی دارد.
ویژگی ADC0804LCN
Compatible With 8080-µP Derivatives – No Interfacing Logic Needed – Access Time 135 ns
Easy Interface to All Microprocessors, or Operates as a Stand-Alone Deivce
Differential Analog Voltage Inputs
Logic Inputs and Outputs Meet Both MOS and TTL Voltage-Level Specifications
Works With 2.5-V (LM336) Voltage Reference
On-Chip Clock Generator
0-V to 5-V Analog Input Voltage Range With Single 5-V Supply
No Zero Adjust Required

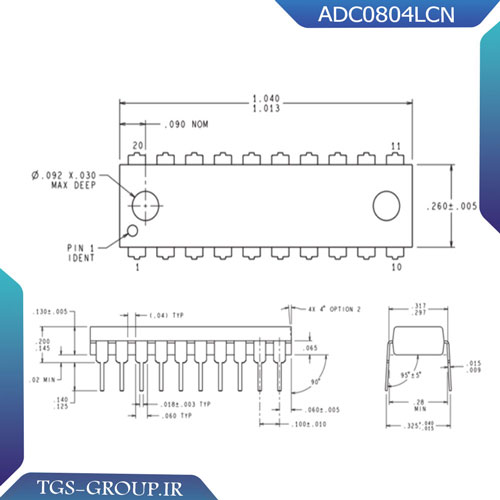

0.3-Inch Standard Width 20-Pin DIP Package
20-Pin Molded Chip Carrier or Small Outline Package
Operates Ratiometrically or With 5 VDC, 2.5 VDC,or Analog Span Adjusted Voltage Reference
Key Specifications
Resolution: 8 Bits
Total Error: ±1/4 LSB, ±1/2 LSB and ±1 LSB
Conversion Time: 100 µs
